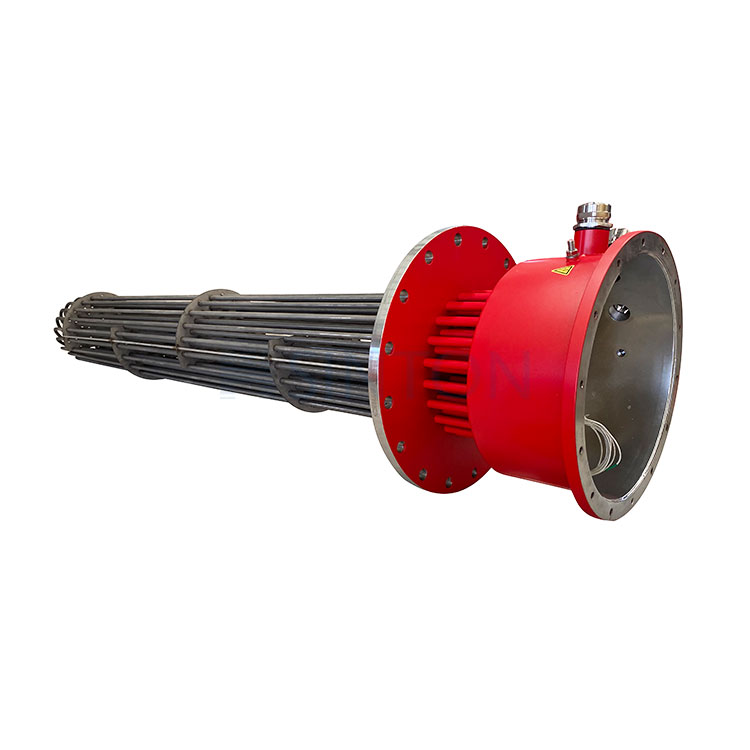

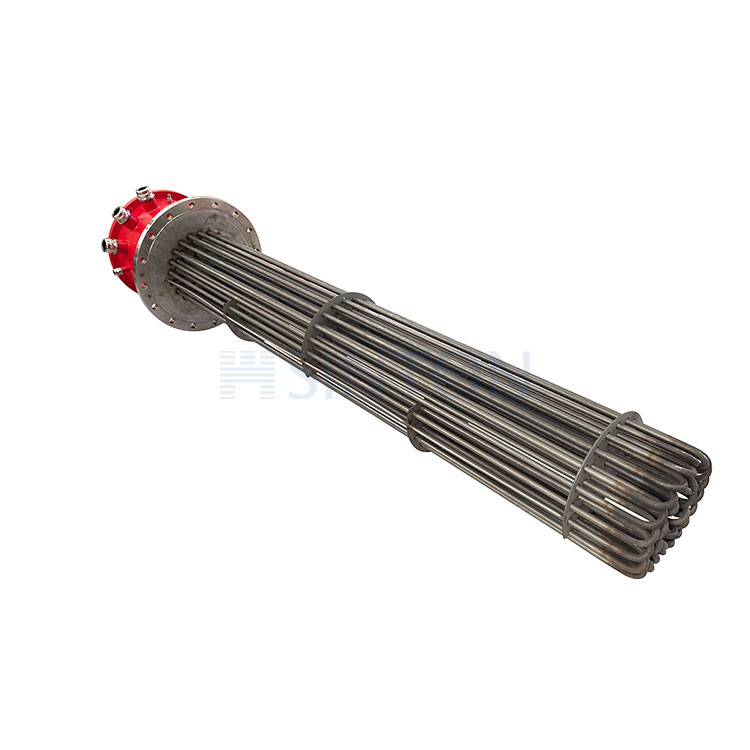

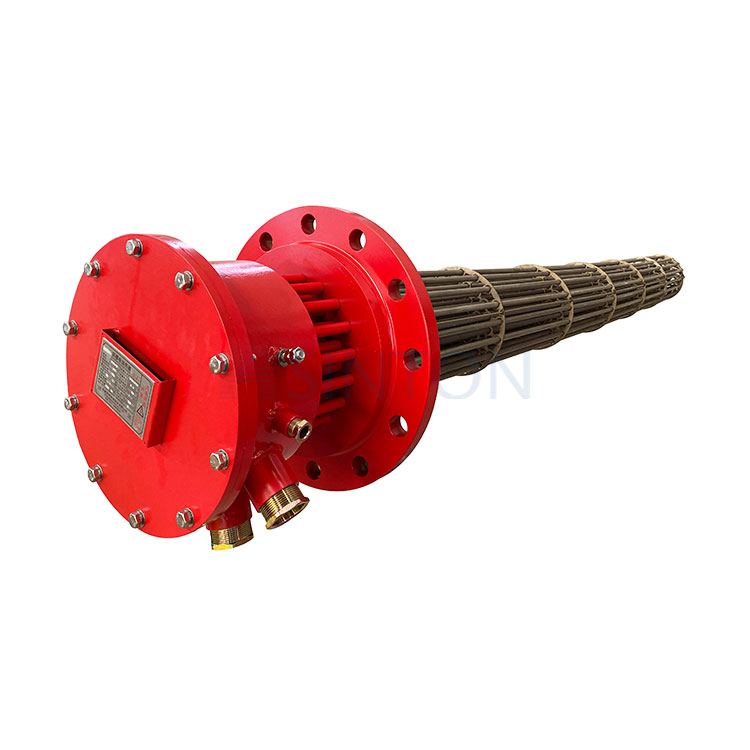

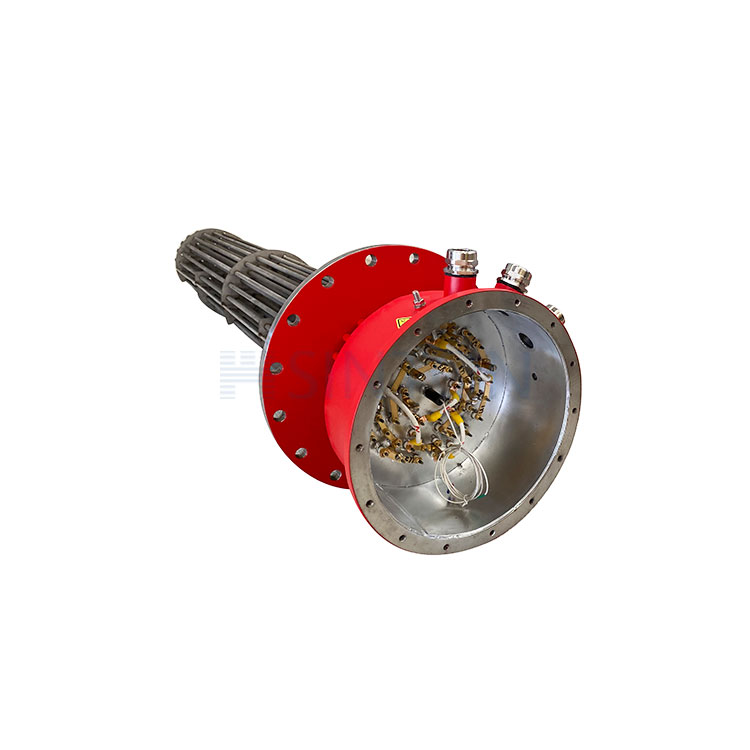

Flanged Heaters

Resistance heating:

The current passes through a high-resistance heating element such as nickel-chromium alloy, and according to Joule's law, the electrical energy is converted into heat energy, which heats up the element.

Heat transfer：

Conduction: Heat is transferred from the heating element to the wall of the pipe or container, heating it up.

Convection:

After the liquid is heated, the hot liquid rises and the cold liquid falls to form convection, and the stirring device or circulating pump can speed up the process.

Radiation:

The heating element dissipates heat from its surroundings in the form of thermal radiation.

Flange Immersion Heater Design & Features：

1. Install and maintain

Flange connection, fast installation, low cost.

Flexible installation position, easy disassembly and maintenance.

2. Heating performance

Rapid heating, high production efficiency.

Uniform heating, stable product quality.

3. Safe and reliable

There are multiple security devices.

Excellent material, stable operation in harsh environment.

4. Temperature control

Precise temperature control.

Flexible temperature adjustment as required.

5. Energy efficient

High thermal efficiency, low energy consumption.

High integration with other equipment, comprehensive use of energy.

Applications:

1.Petrochemical industry

Heat the crude oil to reduce viscosity and facilitate transportation.

Heat chemical reactor materials to meet the reaction temperature requirements.

Heat asphalt, paraffin and other materials to prevent solidification and blockage of pipelines during transportation.

2. Power industry

Heating turbine lubricating oil to ensure its lubrication performance.

Water supply heating for thermal system to improve system efficiency.

3. Food and beverage industry

For dairy products sterilization, concentration, drying and other processing links.

Heating liquid raw materials or products during beverage preparation, sterilization, filling, etc.

4. Shipping industry

Heating fuel to improve combustion efficiency.

Used to heat seawater in desalination plants.

5. Other industries

In pharmaceutical, it is used for raw material synthesis, preparation drying and other links.

Heating hot water or steam in building HVAC systems.
