Heating Equipment
Sinton, a proxy designation for a wide-ranging consortium of enterprises, encompassing those focused on thermal solutions, measurement, and control technologies, presents an extensive array of products and services. These encompass sophisticated heating elements and systems engineered for accurate temperature regulation to technical support and bespoke engineering solutions intended for the enhancement of industrial processes.
The focus is placed on the pivotal role played by these Sinton products in the efficient functionality of heating systems within industrial environments. They deliver localized, precise heating essential for various applications, including, but not limited to, the warming of metal components, process heating, and the temperature regulation of crucial parts in manufacturing and production lines.
Sinton's contributions stand out particularly in the realms of:
·Customizability: Proposing solutions that are adaptable to the specific requisites of an application, guaranteeing good performance.
·Efficiency: Accentuating products crafted for heightened efficiency, which can precipitate considerable energy savings and diminished operational expenses.
·Reliability: Guaranteeing the robustness and longevity of heating systems, pivotal for the sustenance of uninterrupted industrial processes. Technical Support: Supplying exhaustive support and resources, like technical libraries, CAD drawings, and engineering tools, to aid in the formulation and execution of efficacious heating solutions.
Introduction
Parameter detail
Features And Benefits
Applications
details

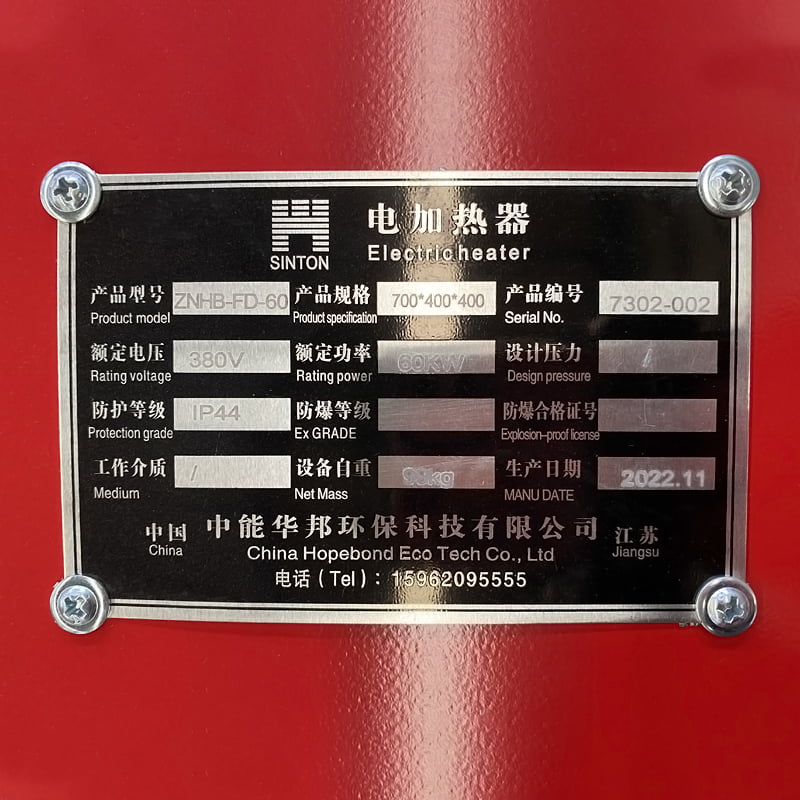

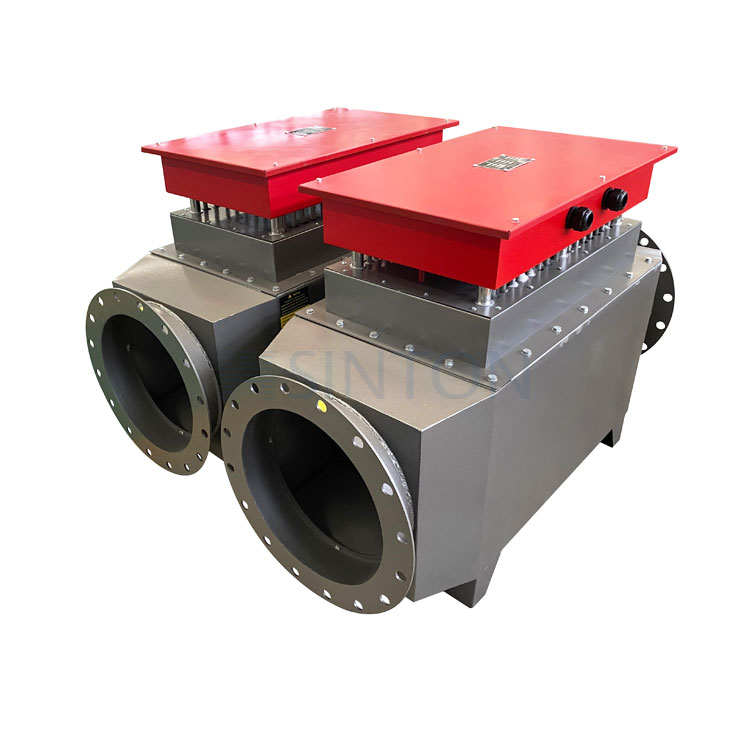

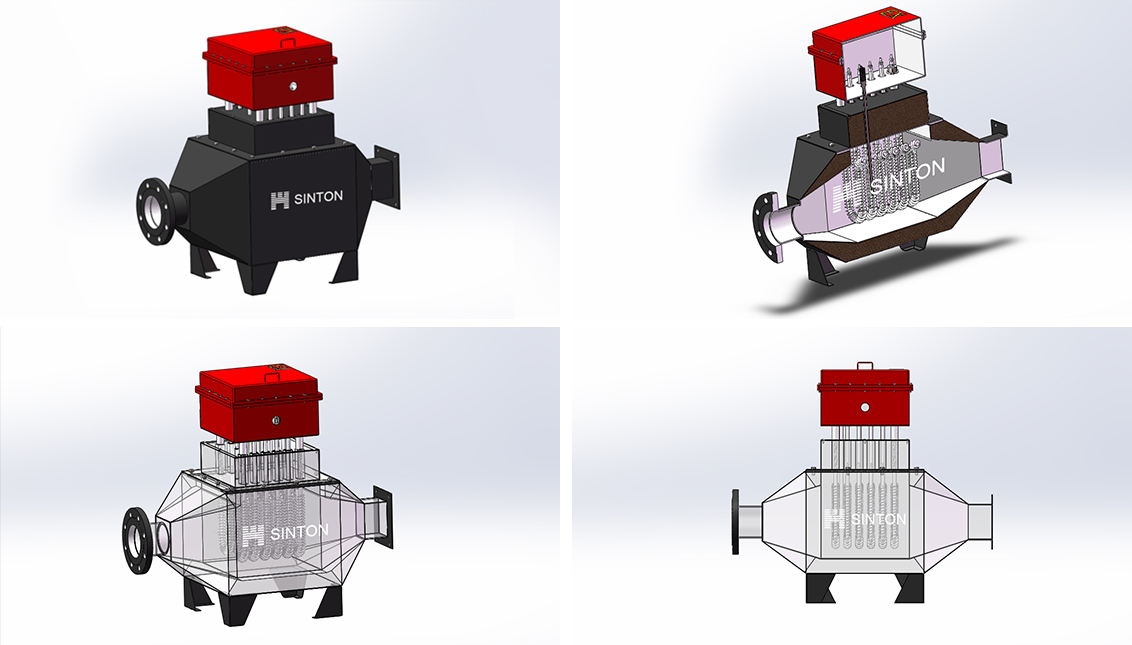

FD-60 Industrial Electric Fast Heating Air Duct Heater with Blower is an efficient heating device specially designed for industrial environments. It uses advanced electric heating technology to heat the air quickly and stably to meet the needs of various industrial productions. The equipment has multiple protection measures and can operate safely and reliably in harsh environments. For example, it is equipped with an overheating protection device that can automatically cut off the power supply when the temperature exceeds the set value, effectively avoiding equipment damage. In addition, it is also waterproof and moisture-proof, making it suitable for various humid or corrosive environments.
FD-60 is widely used in chemical, pharmaceutical, food, metallurgy and other industrial fields. It can be used in processes such as heating air, drying materials, and preheating pipes to improve production efficiency and product quality. The heater is made of high-quality materials and is resistant to high temperatures and corrosion, and can withstand long-term use. At the same time, it has a compact structure and takes up little space. Products of different sizes and powers can be customized according to customer needs.
Product Parameter
| Model | Power | Inner Chamber size | Diameter of air outlet |
| KW | MM | MM | |
| FD-10 | 10 | 300*300*300 | DN100 |
| FD-20 | 20 | 500*300*300 | DN200 |
| FD-30 | 30 | 400*400*400 | DN300 |
| FD-40 | 40 | 500*400*400 | DN300 |
| FD-50 | 50 | 600*400*400 | DN350 |
| FD-60 | 60 | 700*400*400 | DN350 |
| FD-80 | 80 | 700*400*500 | DN350 |
| FD-100 | 100 | 900*400*500 | DN350 |
| FD-120 | 120 | 1000*400*500 | DN350 |
| FD-150 | 150 | 700*750*500 | DN400 |
| FD-180 | 180 | 800*750*500 | DN400 |
| FD-240 | 240 | 1000*750*600 | DN500 |
| FD-300 | 300 | 1200*750*600 | DN500 |
| FD-360 | 360 | 1000*800*900 | DN500 |
| FD-420 | 420 | 1200*800*900 | DN500 |
| FD-480 | 480 | 1400*800*900 | DN500 |
| FD-600 | 600 | 1600*1000*1000 | DN600 |
| FD-800 | 800 | 1800*1000*1000 | DN600 |
| FD-1000 | 1000 | 2000*1000*1000 | DN600 |
details
details

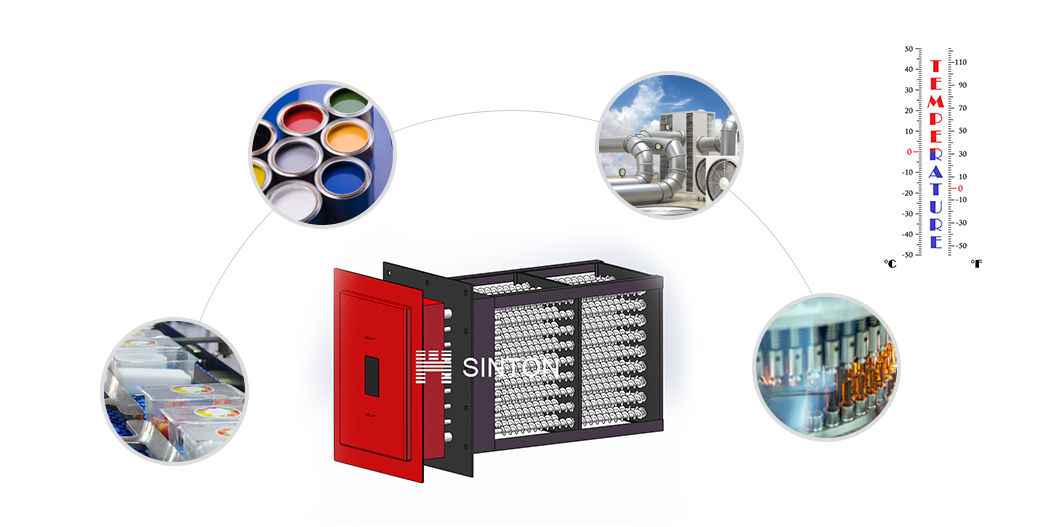

The versatility of Sinton air duct heaters allows for their application across multiple industrial uses, notably:
·Heating processes within manufacturing setups
·Air pre-heating in HVAC systems for sizable industrial edifices
·Drying and curing operations in the pharmaceutical, food, and painting sectors
·Chemical processing that necessitates exact temperature regulation
Shipment
provides customers with quality and safe transportation.
air duct heater package
Heater equipements LCL shipment
heater packed on steel pallet
Immersion heater packing1
LCL loading 3
LCL shipment loading 2
LCL shipment
plywood package 2
